86495 Zebra

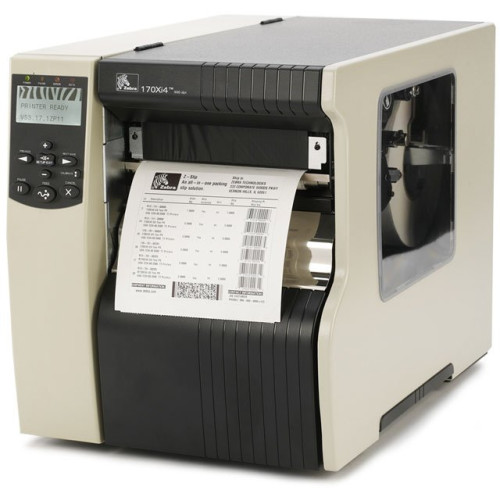

172-801-00200 - Zebra 170Xi4 Bar code Printer

170Xi4, Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
InStock
$5,445.00 $4,628.25
Ships Today
Free Shipping
- +

Description

The industrial-strength Zebra 170Xi4 with 203- or 300 dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.
  • Print methods: Thermal transfer or direct thermal
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 MHz RISC processor
  • 16 MB SDRAM, 8 MB non-volatile Flash memory
  • Automatic media/ribbon sensing capability
  • Auto calibration
  • Clear media side door for ease of supplies monitoring
  • 300 unique darkness settings
  • RS-232, Parallel ports
  • USB 2.0 port
  • Internal ZebraNet 10/100 PrintServer
  • XML enabled printing
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
  • Create and design customizable printer LCD menus
  • Large (240W x 128H pixels), multilingual, backlit, graphical LCD display
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality

Additional Information

Print Speed 12
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options Ethernet
Maximum Print Width 6.60
Item Condition New
Filter Filter
Manufacturer Zebra

Recommended Accessories

Recommended Labels

Recommended Printheads  | View All Options

Recommended Ribbons  | View All Options

  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK11045)

    5586 Premium Wax-Resin, 4.33" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK11045-R)
    $288.19
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK04045)

    5586 Premium Wax-Resin, 1.57" x 1,476' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 05586BK04045-R).
    $104.59
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08945)

    5586 Premium Wax-Resin, 3.5" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08945-R)
    $233.06
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK10245)

    5586 Premium Wax-Resin, 4" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK10245-R)
    $267.69
    Ships In 3-5 Days
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08345)

    5586 Premium Wax-Resin, 3.27" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08345-R)
    $217.93
    Ships Today
    - +

Recommended Warranties

  • Zebra 110Xi4 Service Contract (Z1RS-XI41-2C0)

    Service Contract - 2 year, Select, Renewal, Advanced Exchange, 110Xi4, 140Xi4, 170Xi4, 2 Years, Comprehensive
    $815.00 $628.46
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1A2-XI41-300)

    Service Contract - 3 year, Essential, Purchased within 30 days of Device, Second Business Day On-site (select counties only), 110Xi4, 140Xi4, 170Xi4, 3 Years, Non-Comprehensive
    $1,060.00 $817.37
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1R2-XI41-2C0)

    Service Contract - 2 year, Essential, Renewal, Second Business Day On-site (select counties only), 110Xi4, 140Xi4, 170Xi4, 2 Years, Comprehensive
    $1,220.00 $940.75
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1AS-XI41-300)

    Service Contract - 3 year, Select, Purchased within 30 days of Device, Advanced Exchange, 110Xi4, 140Xi4, 170Xi4, 3 Years, Non-Comprehensive
    $560.00 $431.82
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1AF-XI41-3C0)

    Service Contract - 3 year, Essential, Purchased within 30 days of Device, NBD TAT, NA MX only, 110Xi4, 140Xi4, 170Xi4, 3 Years, Comprehensive
    $785.00 $605.33
    Ships In 3-5 Days
    Free Shipping
    - +

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features:
    • Peel Facility
    • Rewinder
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • ISBT-128
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Plessey
    • Planet Code
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • Micro PDF
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • TLC 39

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170Xi4
  • Product Name: 170Xi4 Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 13.3"
  • Depth: 20.4"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
    • Fanfold
    • Roll Fed
  • Media Thickness: 12 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • 170Xi4 Label Printer
    • User Guide
    • Software CD
    • North American Edition 120 VAC Power Cord
    • 170Xi4 Label Printer
    • User Guide
    • Software CD
    • North American Edition 120 VAC Power Cord

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • XML

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 110 V AC

Display & Graphics

  • Display Screen Type: LCD
