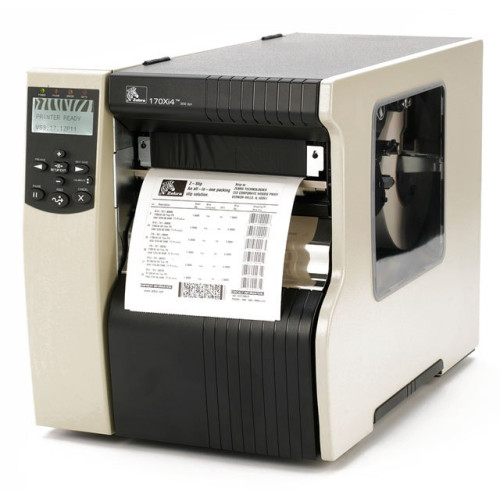

Zebra 170Xi4 Barcode Label Printer Zebra 170Xi4 Barcode Label Printer Zebra 170Xi4 Barcode Label Printer Zebra 170Xi4 Barcode Label Printer

Zebra 170Xi4 Barcode Label Printer
Part #: 170-8K1-00100 | SKU: ZEB172390

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.

Zebra 170Xi4 Barcode Label Printer

Part Details: Thermal transfer printer, 300 dpi, 6.6" print width, tear bar, cutter, RS-232 serial, USB 2.0, Centronics parallel, internal ZebraNet 10/100 print server, 64MB FLASH memory, ZPL II, XML, clear media side door, printhead element out detection, media supply hanger, Includes North America power cord
Need a different version of the Zebra 170Xi4 Barcode Label Printer? View all 22 configurations

Additional Information

Manufacturer AIDC Zebra
Model Name 170Xi4
Print Resolution 300 dpi
Zebra 170Xi4 Specs Zebra 170Xi4 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 7.95 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.61"
  • Recommended Use: Label Print
  • Features:
    • Clear Media Side Door
    • Real Time Clock
    • Element Energy Equalizer
    • Auto-calibration
    • Mirror Printing
    • Cutter
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • ISBT-128
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Standard 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • Micro PDF
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170Xi4
  • Product Name: 170Xi4 Industrial Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 13.3"
  • Depth: 20.4"
  • Form Factor: Desktop
  • Weight (Approximate): 67 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • China RoHS
  • Platform Supported: PC
  • Package Contents:
    • 170Xi4 Industrial Printer
    • Xi4 User Guide
    • Software & Driver CD
    • North American Edition, 120 VAC Cord
    • Programming Guide for ZPL II, WML, and Mirror
    • Product Support Services Guide
    • Radio Card
    • 170Xi4 Industrial Printer
    • Xi4 User Guide
    • Software & Driver CD
    • North American Edition, 120 VAC Cord
    • Programming Guide for ZPL II, WML, and Mirror
    • Product Support Services Guide
    • Radio Card
  • Certifications & Standards:
    • BSMI
    • cTUVus
    • CCC
    • CE
    • C-Tick
    • EN55022 Class B
    • EN55024
    • EN61000-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1
    • EN60950
    • KCC
    • NOM
    • S Mark
    • STB
    • UkrSEPRO
    • VCCI
    • ZIK

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Label
    • Roll Fed
    • Die-cut Label
    • Fanfold
  • Media Handling: Catch Tray
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet
  • Wireless LAN Standard: IEEE 802.11a/b/g

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year
Extended Details
