60415 Zebra

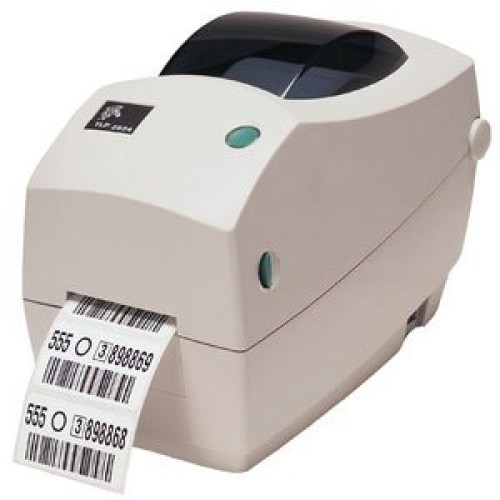

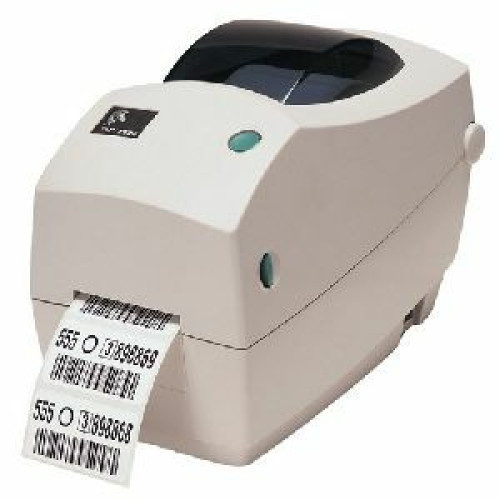

Zebra TLP 2824 Bar code Printer Part # 2824-11202-0001

The TLP 2824 is a desktop printer which boasts a surprisingly compact footprint without compromising performance or value. This 2 inch print width printer offers a multitude of user-friendly and innovative features all packed into a small but sturdy double-walled casing. With its competitive electronic platform the TLP 2824 delivers high quality bar code label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions.

2824-11202-0001 - Zebra TLP 2824 Bar code Printer

Part Details: TLP 2824, Thermal transfer printing, 203 dpi, 2.25" print width, Parallel Interface, Cutter. Includes US power supply. Order cables separately.
InStock

Additional Information

Filter Filter
Interface Options Parallel
Label Core 1 inch
Manufacturer Zebra
Max Label Width 2.40
Max Roll Outer Diameter 5
Maximum Print Width 2.20, 2.25
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 3.5
Printer Mobility Not Mobile
Printer Type Desktop
Product Condition New
  • Construction: High-impact, double-walled plastic enclosure
  • Print speed: 4 inches (102 mm) per second
  • Print width: 2.2 inch (56 mm)
  • Resolution: 203 dpi (8 dots/mm)
  • ZebraLink-enabled: No

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces: 1 x Parallel
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.36"
  • Maximum Label Length: 11"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage Range: 100 to 240 V AC
  • Power Supply: External
  • RAM Memory: 128KB
  • Flash Memory: 512KB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 7" (177.8mm) x 5.5" (139.7mm) x 9.5" (241mm)
    • 7" (177.8mm) x 5.5" (139.7mm) x x 9.5" (241mm)
  • Weight: 3.5 lb (1.59 kg)
  • Shipping Weight: 6.1lb (2.77kg)

Included Features

  • Included Features: Cutter

Agency Approvals

  • Agency Approvals:
    • UL-CUL
    • FCC
    • VCCI
    • CB
    • CE
    • C-TICK
    • CCC/SRRC
    • NOM
    • IRAM
    • BSMI
    • CSA
    • VCCI/PSE
    • GOST-R

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating - Thermal Transfer
    • 40°F (4°C) to 105°F (41°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
  • Ribbon Core Size: 0.5"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • TLP 2824P Label Printer
    • User Documentation: English, European, Latin America

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories

Recommended Labels

  • Zebra Z-Select 4000T Label (10009523)

    Z-Select 4000T, 1.25" x 1" Thermal transfer paper label. 2,580 labels/roll, 6 roll case. Also available as a roll (Part# 10009523-R).
    Price: $39.21
    In Stock
  • Zebra Z-Select 4000T Label (10009522)

    Z-Select 4000T, 1.188" x 0.84" Thermal transfer paper label. 3,000 labels/roll, 6 roll case.
    Price: $39.74
    In Stock
  • Zebra Z-Select 4000T Label (10009525)

    Z-Select 4000T, 2.25" x 2" Thermal transfer paper label. 1370 labels/roll, 6 roll case.
    Price: $64.20
    In Stock
  • Zebra Z-Select 4000T Label (10009526)

    Z-Select 4000T, 2.25" x 3" Thermal transfer paper label. 930 labels/roll, 6 roll case. Also available as a roll (Part# 10009526-R)
    Price: $64.10
    In Stock
  • Zebra Z-Select 4000T Label (10009524)

    Z-Select 4000T, 2.25" x 0.75" Thermal transfer paper label. 3,320 labels/roll, 6 roll case. Also available as a roll (Part# 10009524-R).
    Price: $64.20
    In Stock

Recommended Printheads

Recommended Ribbons

  • Zebra 3200 Performance Wax-Resin Ribbon (800132-101)

    3200 Performance Wax-Resin, 1.3" x 244' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (800132-101-R)
    Price: $30.11
    In Stock
  • Zebra 5095 Performance Resin Ribbon (800132-201)

    5095 Performance Resin, 1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (800132-201-R)
    Price: $46.63
    In Stock
  • Zebra 5319 Performance Wax Ribbon (800132-001)

    5319 Performance Wax, 1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (800132-001-R)
    Price: $25.65
    In Stock
  • Zebra 5095 Performance Resin Ribbon (800132-201-R)

    5095 Performance Resin, 1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, rolls/case: 1, Core Size: 0.5", single roll. Available as a case (800132-201)
    Price: $12.06
    In Stock
  • Zebra TLP 2824 Ribbon (800132-001-R)

    5319 Wax, 1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 1, Core Size: 0.5", single roll. Available as a case (800132-001)
    Price: $11.14
    Ships in 3-5 Days
