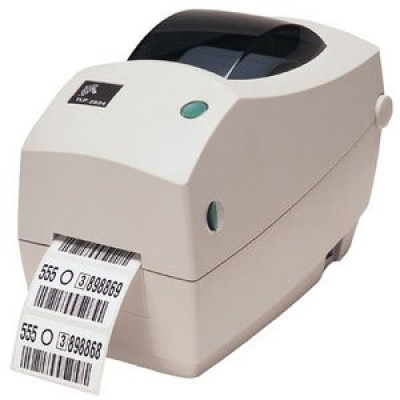

Zebra TLP 2824 Barcode Label Printer

Zebra TLP 2824 Barcode Label Printer

With its competitive electronic platform, the Zebra TLP 2824 delivers high quality bar code label printing at 3.5 ips and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.
Discontinued - Need Assistance
See all options
  • Construction: High-impact, double-walled plastic enclosure
  • Print speed: 4 inches (102 mm) per second
  • Print width: 2.2 inch (56 mm)
  • Resolution: 203 dpi (8 dots/mm)
  • ZebraLink-enabled: No

Standard Features

  • Print methods: Direct thermal or direct thermal/thermal transfer
  • Construction: ABS double-walled casing
  • OpenACCESS design
  • 32 bit RISC processor
  • Resident scalable font
  • Head-up sensor

Printer Specifications

Resolution
203 dpi (8 dots/mm)
Memory
  • Standard: 8 MB SDRAM (4 MB available to user); 4 MB Flash (2.75 available to user)
  • Optional: 8 MB Flash with real time clock (12 MB total)
Print width
2.2" (56 mm)
Print length
39" (991 mm)
Print speed
4" (102 mm)/sec
Media sensors
Reflective
Transmissive

Media Characteristics

Maximum label and liner width
2.36" (59.9 mm)
Minimum label and liner width
1.00" (25.4mm)
Maximum label and liner length
39" (991 mm)
Maximum label and liner length (optional)
N/A no SDRAM optional memory
Maximum roll diameter
5" (127 mm)
Core diameter
1.0" (25.4 mm) and 1.5" (38 mm)
Media thickness
0.003" (.075 mm) to 0.007" (0.18 mm)
Media types
fanfold, roll-fed, continuous, die-cut, tag stock, continuous receipt, linerless, black bar, black mark, gap, notch, optional linerless platen, receipt

Ribbon Characteristics

Outside diameter
1.36" (35 mm)
Standard length
244' (74 m)
Ratio
1:1
Ribbon width
  • Recommended to be at least as wide as media
  • 1.33" (33.8 mm) to 2.24" (58 mm)
ID Core
0.5" (12.7 mm)

Operating Characteristics

Operating temperature
TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal
Storage temperatures
-40° F (-40° C) to 140° F (60° C)
Operating humidity
10-90% non-condensing
Storage humidity
5-95% non-condensing
Electrical
Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz
Agency approvals
  • FCC
  • VCCI/PSE
  • C-TICK
  • UL
  • NOM
  • CE
  • CCC/SRRC
  • IEC
  • IRAM
  • AAMI

Physical Characteristics

Width
5.5" (140 mm)
Height
7.0" (178 mm)
Depth
9.5" (241 mm)
Weight
3.5 lbs (1.6 kg)
Shipping weight
6.1 lbs (2.8 kg)
Orientation
Center

Related Products

Options
  • Cutter
  • Asian language support
  • Internal ZebraNet PrintServer II for Ethernet connectivity
  • Dispenser with label taken sensor
  • 8 MB Flash memory with real time clock
Communication and Interface Capabilities
  • Serial RS-232 (DB9)
  • Parallel (Centronics)
  • USB
  • Optional Internal or External ZebraNet PrintServer II

Programming Languages

Core programming languages
ZPL, ZPL II

Bar codes/Symbologies

Linear
Code 11
Code 39
Code 93
Code 128
EAN-13
EAN-8
UPC-A
UPC-E
Plessey
Postnet
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
RSS-14 (limited, truncated, stacked)
UPC-A and UPC-E with EAN 2 or 5 digit extensions
2-dimensional
PDF417
MicroPDF417
Code 49
MaxiCode
Codablock
Data Matrix
QR Code
RSS
Fonts and Graphics
  • Standard Fonts: 16 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
  • Supports user-defined fonts and graphics - including custom logos
  • IBM Code Page 850 International Characters
