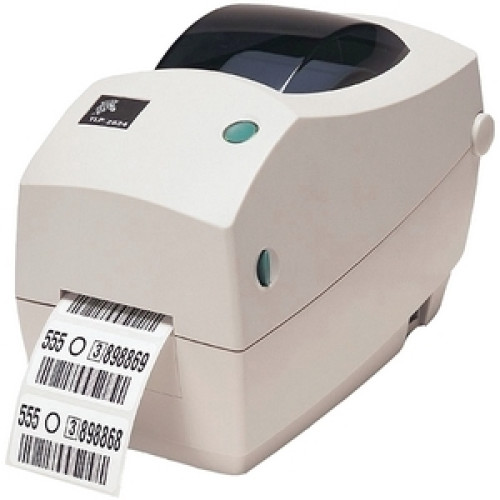

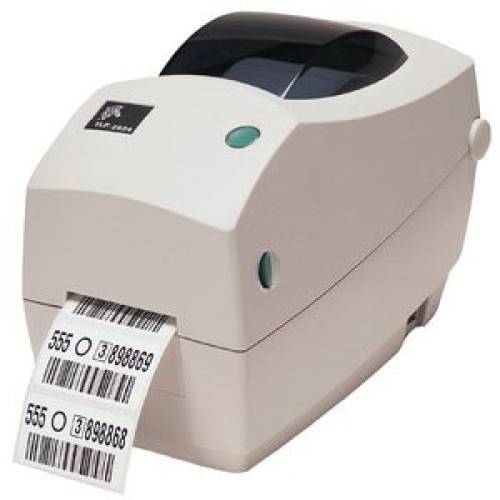

Zebra TLP 2824 Barcode Label Printer
Part #: 2824-11402-0001 | SKU: 47837

The TLP 2824 is a desktop printer which boasts a surprisingly compact footprint without compromising performance or value. This 2 inch print width printer offers a multitude of user-friendly and innovative features all packed into a small but sturdy double-walled casing. With its competitive electronic platform the TLP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions.

Zebra TLP 2824 Barcode Label Printer

Part Details: Direct Thermal/Thermal Transfer printing, 203 dpi, 2.25" print width, Serial and Ethernet Interfaces, Cutter. Includes US power supply. Order cables separately.

Additional Information

Interface Options No
Manufacturer No
Max Label Width No
Max Roll Outer Diameter No
Model Name TLP 2824
Print Resolution No
Printer Type No
Printing Technology Thermal Transfer
Ribbon Core Size No

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Serial
    • 1 x 10 Base-T Ethernet
    • 1 x Ethernet
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.36"
  • Maximum Label Length: 11"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage Range: 100 to 240 V AC
  • Power Supply: External
  • RAM Memory: 128KB
  • Flash Memory: 512MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 7" (177.8mm) x 5.5" (139.7mm) x 9.5" (241mm)
    • 7" (177.8mm) x 5.5" (139.7mm) x x 9.5" (241mm)
  • Weight: 3.5 lb (1.59 kg)
  • Shipping Weight: 6.1lb (2.77kg)

Included Features

  • Included Features:
    • Cutter
    • Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • UL-CUL
    • FCC
    • VCCI
    • CB
    • CE
    • C-TICK
    • CCC/SRRC
    • NOM
    • IRAM
    • BSMI
    • CSA
    • VCCI/PSE
    • GOST-R

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating - Thermal Transfer
    • 40°F (4°C) to 105°F (41°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
  • Ribbon Core Size: 0.5"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • TLP 2824 Label Printer
    • User Documentation: English, European, Latin America

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Zebra TLP 2824 Barcode Label Printer

  • BCI Cables Accessory
    Part #: 2901-6MF9 | SKU: BCI21160

    6' Serial cable (25 pin male to 9 pin female)
    Price: $13.20
    In Stock
  • Cables To Go Accessory
    Part #: 13400 | SKU: 143521

    10ft USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M).
    Price: $13.07
    In Stock
  • Cables To Go Accessory
    Part #: 13172 | SKU: 143509

    6ft USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
    Price: $12.82
    In Stock
  • Zebra 2844 Accessory
    Part #: 105850-006 | SKU: 29706

    USB Interface Cable, 6FT (A to B)
    $20.13
    In Stock
  • Zebra 2824 Accessory
    Part #: 120181-005 | SKU: 21350

    Keyboard display unit - requires serial interface. No auxilliary port.

Recommended Labels for Model: Zebra TLP 2824 Barcode Label Printer

  • Zebra Z-Select 4000D Barcode Label
    Part #: 10010037-R | SKU: ZEB71502

    1.2" x 0.85" Direct thermal paper label. 2,710 labels/roll, single roll. Also available as a case (Part# 10010037).
    Price: $17.51
    In Stock
  • Zebra Z-Select 4000D Barcode Label
    Part #: 10010038-R | SKU: ZEB71503

    1.25" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. Also available as a case (Part# 10010038).
    Price: $17.03
    In Stock
  • Zebra Z-Select 4000D Barcode Label
    Part #: 10015340-R | SKU: 164761

    2.25" x 0.75" Direct thermal paper label, Perforated, 1" core, 5" outer diameter, 3315 labels/roll, single roll. Does not required a ribbon. Also available as a 12 roll case (Part# 10015340).
    Price: $23.96
    In Stock
  • Zebra Z-Select 4000T Barcode Label
    Part #: 10009523 | SKU: 66358

    Labels - Zebra - 1.25" X 1" Thermal Transfer Paper Label. 2,580 Labels/Roll - 6 Roll Case
    $44.98
    In Stock
  • Zebra Z-Select 4000T Barcode Label
    Part #: 10009524 | SKU: 65402

    Labels - Zebra - 2.25" X 0.75" Thermal Transfer Paper Label. 3,320 Labels/Roll - 6 Roll Case
    $73.68
    In Stock

Recommended Printheads for Model: Zebra TLP 2824 Barcode Label Printer

  • Zebra TLP 2824 Plus Printhead
    Part #: G105910-148 | SKU: 24068

    REPLACEMENT PRINTHEAD KIT, 203 DPI, COMPATIBLE PRINTER MODEL 2824 SERIES. THIS IS A ZEBRA PRINTER REPAIR PART.
    $131.73
  • Zebra 2824 Series Printhead
    Part #: 105910-148 | SKU: 30128

    Replacement printhead, 203 dpi.

Recommended Ribbons for Model: Zebra TLP 2824 Barcode Label Printer

  • Zebra 3200 Performance Ribbon
    Part #: 800132-101 | SKU: 48055

    1.3" x 244' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (800132-101-R)
    MSRP: $29.16 Price: $27.78
    In Stock
  • Zebra 5319 Performance Ribbon
    Part #: 800132-001 | SKU: 48145

    1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (800132-001-R)
    MSRP: $26.28 Price: $25.94
  • Zebra 5095 Performance Resin Ribbon
    Part #: 800132-201-R | SKU: 10449

    1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(800132-201)
    Price: $12.86
  • Zebra 5319 Performance Ribbon
    Part #: 800132-001-R | SKU: 10445

    1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(800132-001)
    Price: $11.61
  • Zebra 5095 Performance Resin Ribbon
    Part #: 800132-201 | SKU: 48101

    1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (800132-201-R)
    MSRP: $46.68 Price: $38.36
