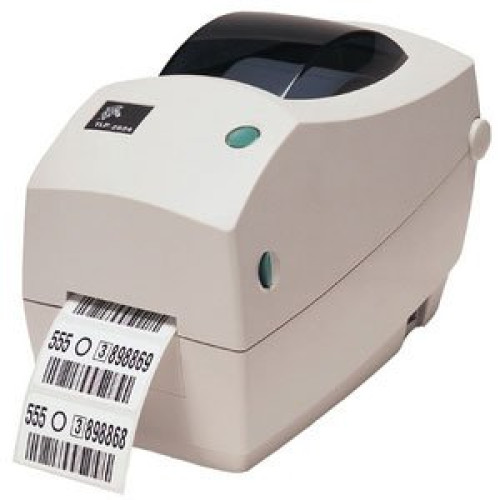

Zebra TLP 2824 Barcode Label Printer
Part #: 2824-11400-0001 | SKU: ZEB16613

The TLP 2824 is a desktop printer which boasts a surprisingly compact footprint without compromising performance or value. This 2 inch print width printer offers a multitude of user-friendly and innovative features all packed into a small but sturdy double-walled casing. With its competitive electronic platform the TLP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions.

Zebra TLP 2824 Barcode Label Printer

Part Details: Direct Thermal/Thermal Transfer printing, 203 dpi, 2.25" print width, Serial and Ethernet Interfaces. Includes US power supply. Order cables separately.

Additional Information

Interface Options Ethernet, Serial (RS-232)
Label Core 1 inch
Manufacturer Zebra
Max Label Width 2.4"
Max Roll Outer Diameter 5
Maximum Print Width 2.2, 2.25
Model Name TLP 2824
Print Resolution 203 dpi
Print Speed 3.5
Printer Type Desktop
Printing Technology Thermal Transfer
Ribbon Core 0.5 inch

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Ethernet
    • 1 x Serial
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.36"
  • Maximum Label Length: 11"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage Range: 100 to 240 V AC - USA & European
  • RAM Memory: 128KB
  • Flash Memory: 512KB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 7" (177.8mm) x 5.5" (139.7mm) x 9.5" (241mm)
    • 7" (177.8mm) x 5.5" (139.7mm) x x 9.5" (241mm)
  • Weight: 3.5 lb (1.59 kg)
  • Shipping Weight: 6.1lb (2.77kg)

Included Features

  • Included Features: Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • UL-CUL
    • FCC
    • VCCI
    • C-TICK
    • CB
    • CE
    • CCC
    • NOM
    • IRAM
    • BSMI
    • GOST-R
    • PSE
    • SRRC
    • CSA

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
  • Ribbon Core Size: 0.5"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • TLP 2824 Label Printer
    • User Documentation: English/European/Latin America

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Zebra TLP 2824 Barcode Label Printer

  • BCI Cables Accessory
    Part #: 2901-6MF9 | SKU: BCI21160

    6' Serial cable (25 pin male to 9 pin female)
    Price: $13.20
    In Stock
  • Cables To Go Accessory
    Part #: 13400 | SKU: CAB143521

    10ft USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M).
    Price: $13.07
    In Stock
  • Cables To Go Accessory
    Part #: 13172 | SKU: CAB143509

    6ft USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
    Price: $12.82
    In Stock
  • Zebra 2844 Accessory
    Part #: 105850-006 | SKU: ZEB29706

    USB Interface Cable, 6FT (A to B)
    MSRP: $20.13 Price: $19.52
    In Stock
  • Zebra 2824 Accessory
    Part #: 120181-005 | SKU: ZEB21350

    Keyboard display unit - requires serial interface. No auxilliary port.

Recommended Labels for Model: Zebra TLP 2824 Barcode Label Printer

  • Zebra Z-Select 4000D Barcode Label
    Part #: 10010037-R | SKU: ZEB71502

    1.2" x 0.85" Direct thermal paper label. 2,710 labels/roll, single roll. Also available as a case (Part# 10010037).
    Price: $17.69
    In Stock
  • Zebra Z-Select 4000D Barcode Label
    Part #: 10010038-R | SKU: ZEB71503

    1.25" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. Also available as a case (Part# 10010038).
    Price: $17.20
    In Stock
  • Zebra Z-Select 4000D Barcode Label
    Part #: 10015340-R | SKU: ZEB164761

    2.25" x 0.75" Direct thermal paper label, Perforated, 1" core, 5" outer diameter, 3315 labels/roll, single roll. Does not required a ribbon. Also available as a 12 roll case (Part# 10015340).
    Price: $21.87
    In Stock
  • Zebra Z-Select 4000T Barcode Label
    Part #: 800272-125-R | SKU: ZEB17757

    2.25" x 1.25" Thermal transfer paper label. 2,100 labels/roll, single roll. Also available as a case (Part# 800272-125).
    Price: $18.98
    In Stock
  • Zebra Z-Select 4000T Barcode Label
    Part #: 10009523 | SKU: ZEB66358

    Labels - Zebra - 1.25" X 1" Thermal Transfer Paper Label. 2,580 Labels/Roll - 6 Roll Case
    MSRP: $56.22 Price: $44.43
    In Stock

Recommended Printheads for Model: Zebra TLP 2824 Barcode Label Printer

  • Zebra TLP 2824 Plus Printhead
    Part #: G105910-148 | SKU: ZEB24068

    REPLACEMENT PRINTHEAD KIT, 203 DPI, COMPATIBLE PRINTER MODEL 2824 SERIES. THIS IS A ZEBRA PRINTER REPAIR PART.
    MSRP: $131.73 Price: $104.36
  • Zebra 2824 Series Printhead
    Part #: 105910-148 | SKU: ZEB30128

    Replacement printhead, 203 dpi.

Recommended Ribbons for Model: Zebra TLP 2824 Barcode Label Printer

  • Zebra 5319 Performance Ribbon
    Part #: 800132-001 | SKU: ZEB48145

    1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (800132-001-R)
    Price: $26.43
    In Stock
  • Zebra 3200 Performance Ribbon
    Part #: 800132-101 | SKU: ZEB48055

    1.3" x 244' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (800132-101-R)
    MSRP: $29.16 Price: $27.78
    In Stock
  • Zebra 5095 Performance Resin Ribbon
    Part #: 800132-201 | SKU: ZEB48101

    1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (800132-201-R)
    MSRP: $46.68 Price: $39.22
    In Stock
  • Zebra 5095 Performance Resin Ribbon
    Part #: 800132-201-R | SKU: ZEB10449

    1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(800132-201)
    Price: $12.86
  • Zebra 5319 Performance Ribbon
    Part #: 800132-001-R | SKU: ZEB10445

    1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(800132-001)
    Price: $11.61
