Additional Information
| Interface Options | Wi-Fi |
|---|---|
| Manufacturer | Zebra |
| Max Roll Outer Diameter | 2.6 |
| Model Name | QL 420 |
| Print Resolution | 203 dpi |
| Printer Type | Mobile |
| Printing Technology | Direct Thermal |

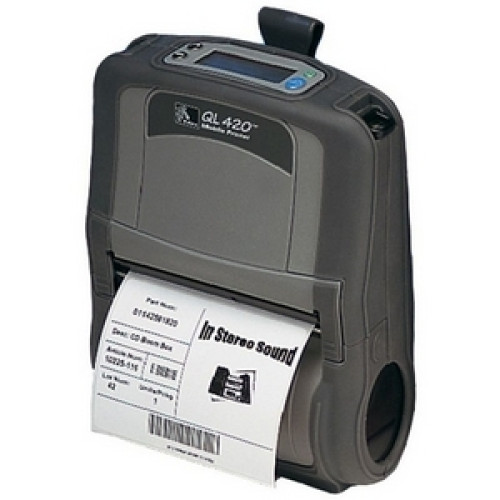

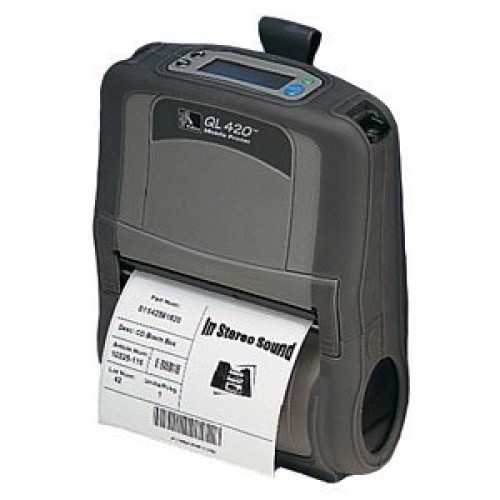

Zebra QL 420 Specs
Technical Information
- Maximum Mono Print Speed: 3 in/s
- Maximum Print Resolution: 203 dpi
- Maximum Print Width: 4.09"
- Recommended Use: Label Print
- Features:
- LCD Display
- Belt Clip
- Barcode Symbology Supported:
- Codabar
- Code 128
- Code 93
- Code 39
- EAN-13
- EAN-8
- Interleaved 2 of 5
- MSI
- Plessey
- POSTNET
- UCC/EAN 128
- UPC-A
- UPC-E
- EAN-18
- FIM
- Maxi Code
- PDF-417
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: QL
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: QL 420
- Product Name: QL 420 Mobile Thermal Label Printer
Physical Characteristics
- Height: 7.5"
- Width: 6"
- Depth: 3"
- Form Factor: Portable
Other
- Platform Supported: PC
- Package Contents:
- QL 420 Mobile Label Printer
- Lithium ion battery
- QL 420 Mobile Label Printer
- Lithium ion battery
- Certifications & Standards:
- FCC Class B
- CE Class B
- CSA
- CB
- NOM
- C-Tick
- Additional Information:
- Media Handling: Direct Thermal/ Linered Platen
- Reflective & Transmissive sensor
- Ancillary Items: VAR (adds UMAN/accessories cd)
- QuickLink module: 802.11b (Cisco 352 PCMCIA) North America
- Character Set: US/Canadian English/Latin 1 & 5 (Including Turkish)
Media Types & Handling
- Maximum Label Width: 4.12"
- Maximum Label Length: 20"
- Media Type:
- Roll Fed
- Die-cut Label
- Linerless
- Receipt
- Fanfold
- Media Thickness: 6.50 mil
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Core Size: 8"
- Maximum Roll Diameter: 2.60"
Memory
- Standard Memory: 2 MB
- Flash Memory: 2 MB
Battery Information
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Display & Graphics
- Display Screen Type: LCD
Network & Communication
- Wireless LAN: Yes
Warranty
- Limited Warranty: 1 Year
Fonts & Emulation
- Language Emulation: ZPL
